NanoVNA V2 4.3 inch 3GHz NanoVNA-F V2 HF VHF UHF Vector Network Analyzer Antenna Analyzer SWR

Features:

NanoVNA-F V2 is a new generation of portable, stand-alone vector network analyzer with 4.3" IPS LCD screen, metal enclosure, 5000mAh battery and SMA connectors. It is a product based on edy555's NanoVNA and OwOComm's S-A-A-V2. The measurement frequency range of NanoVNA-F V2 is up to 3GHz. The S21 dynamic range is better than 70dB at 50kHz-1.5GHz and better than 60dB at 1.5GHz - 3GHz. NanoVAN-F V2 can work continuous for 7 hours duo to the large capacity battery and low-power consumption design.

Sprcifiaction:

• Frequency range: 50kHz ~ 3GHz
• S11 dynamic range: 50dB(50kHz ~ 1.5GHz), 40dB(1.5GHz ~ 3GHz)
• S21 dynamic range: 70dB(50kHz ~ 1.5GHz), 60dB(1.5GHz ~ 3GHz)
• RF output power: -9dBm
• Frequency tolerance: 0.5ppm
• Screen: 4.3" IPS LCD, 800*480, RTP touchpad
• Operation via touch screen or 3 side buttons
• Battery: 3.7V Li-Po, 5000mAh
• Aluminum enclosure: 125mm x 75mm x 20mm
• SMA femal RF port
• Sweep points: 101
• Calibration result storage: 5
• Calibration result interpolating supported
• Traces: 4
• Markers: 4
• ​Measures: S-parameter, VSWR, smith chart, phase, ploar, etc.
• Mark table can be moved up and down
• Firmware upgrade via U-disk with type-c cable
• USB power output: 5V/1A
• Compatible with NanoVNA-saver, support screenshot

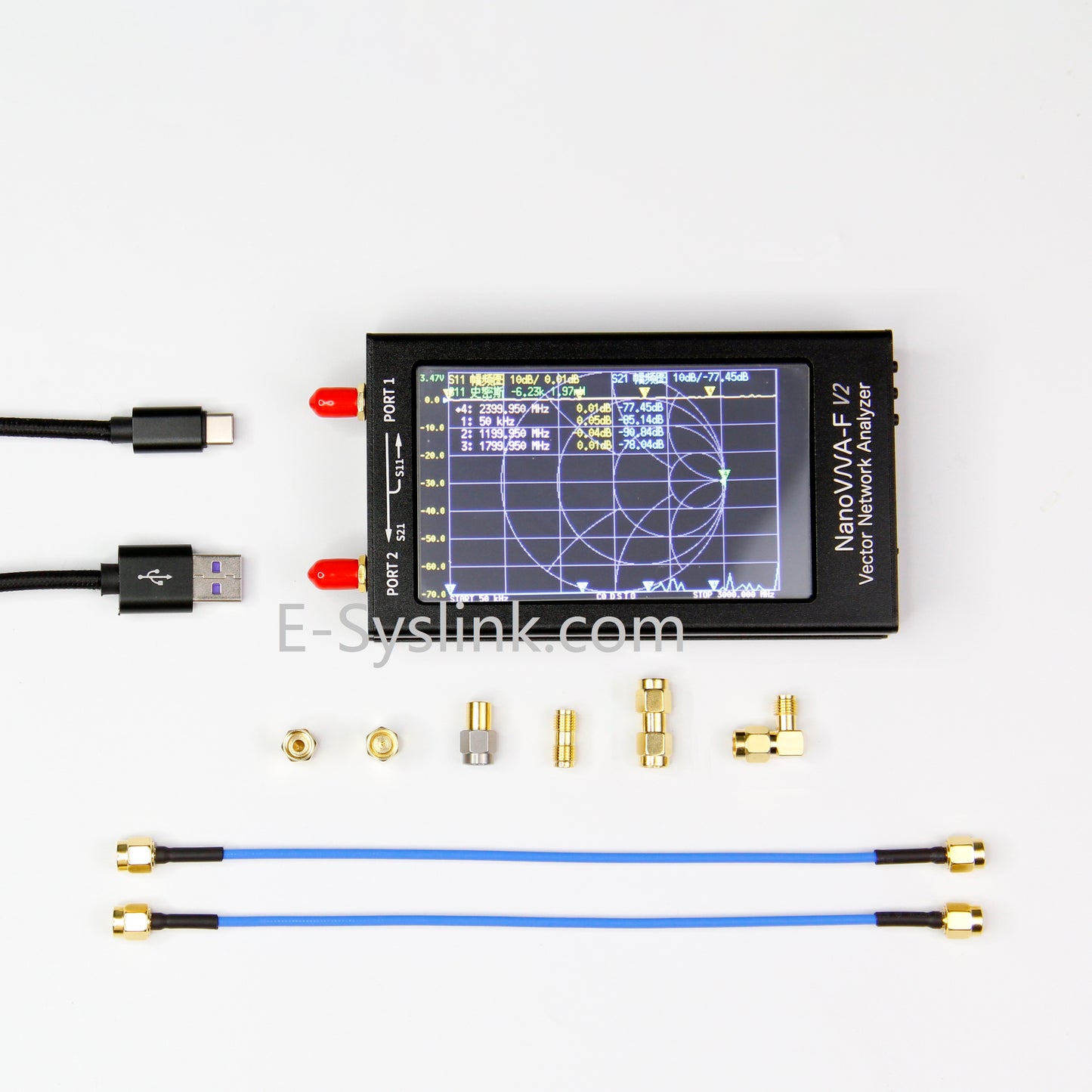

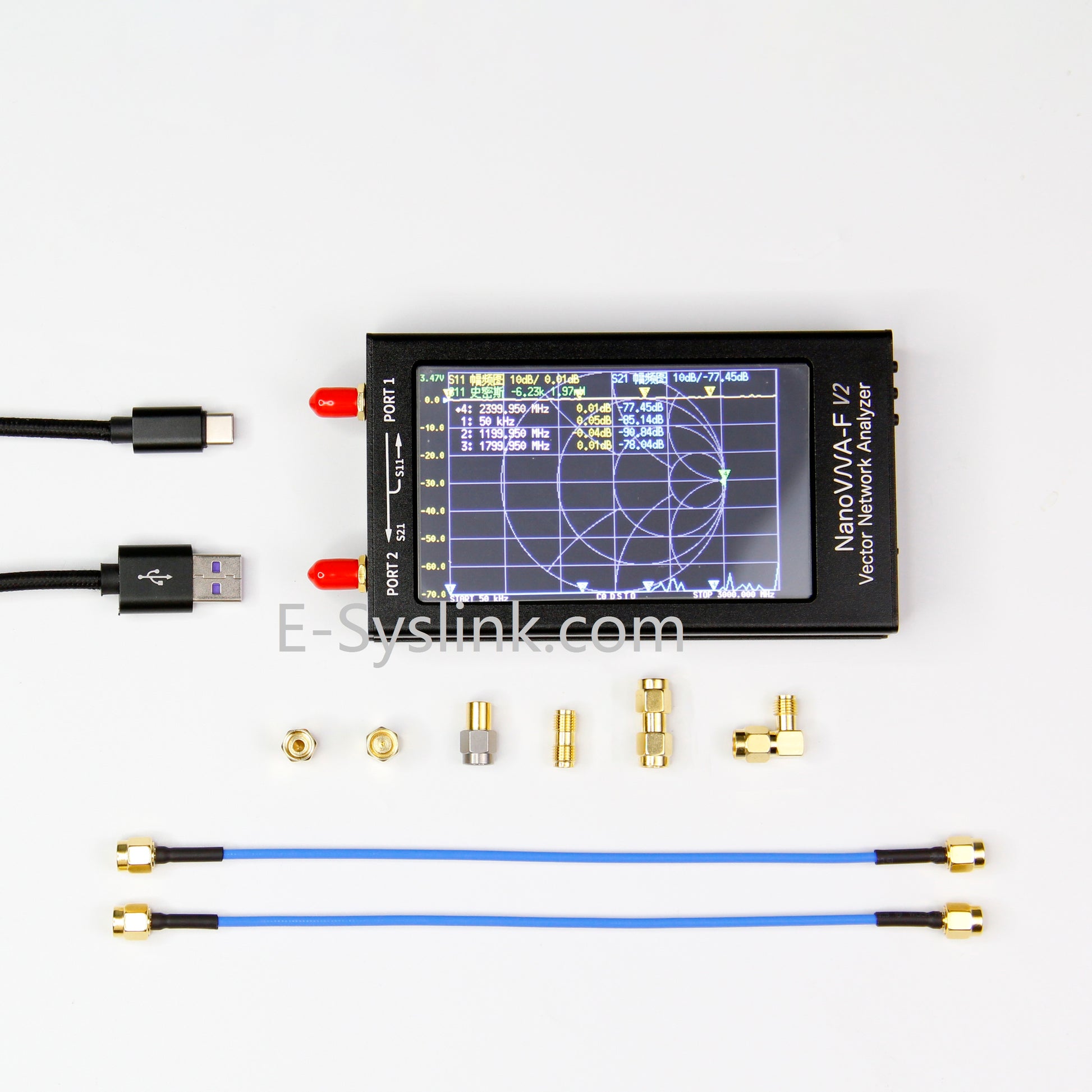

Package list:

1. NanoVNA-F V2 x1
2. 20cm SMA-JJ RG405 cable  x2
3. Calibration kit: SMA OPEN/SHORT/50ohm LOAD
4. SMA-KK adapter x1
5. SMA-JJ adapter x1
6. SMA-JKW adapter x1
7. USB Type-C cable x1
8. Stylus x1

NanoVNA-F V2 has excellent dynamic performance and can be used to test UHF and VHF duplexers：

868MHz antenna testing:

915MHz antenna testing:

2.4GHz microstrip filter testing:

nanovna-saver

Screenshot via nanovna-saver

circuit board design of NanoVNA-F V2:

PORT1 RF power level:
